Product Summary
The M24C02-RDW6TP is I2C-compatible electrically erasable programmable memory (EEPROM) device. This device is organized as 2048/ 1024/ 512/ 256/ 128 x 8 (M24C16, M24C08, M24C04, M24C02, M24C01).When writing data to the memory, the device inserts an acknowledge bit during the 9th bit time, following the bus master’s 8-bit transmission.When data is read by the bus master, the bus master acknowledges the receipt of the data byte in the same way. Data transfers are terminated by a Stop condition after an Ack for Write, and after a NoAck for Read.
Parametrics
Absolute maximum ratings:(1)Storage Temperature, TSTG: –65 to 150°C; (2)Lead Temperature during Soldering See note, TLEAD: 1°C; (3)Input or Output range, VIO: –0.50 to 6.5V; (4)Supply Voltage, VCC: –0.50 to 6.5V; (5)Electrostatic Discharge Voltage (Human Body model), VESD: –4000 to 4000V.
Features
Features: (1)Two Wire I2C Serial Interface; (2)Supports 400kHz Protocol; (3)Single Supply Voltage: 1.8 to 5.5V for M24Cxx-R; (4)Write Control Input; (5)BYTE and PAGE WRITE (up to 16 Bytes); (6)RANDOM and SEQUENTIAL READ Modes; (7)Self-Timed Programming Cycle; (8)Automatic Address Incrementing; (9)Enhanced ESD/Latch-Up Behavior; (10)More than 1 Million Erase/Write Cycles; (11)More than 40 Year Data Retention.

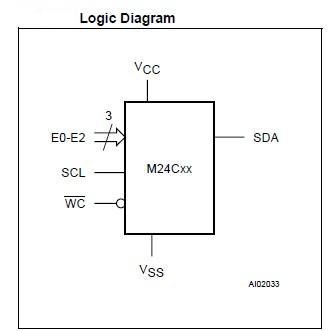

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M24C02-RDW6TP |
STMicroelectronics |
EEPROM E-EPROM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
M24C01 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
M24C01-BN6 |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M24C01-MN3T |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M24C01-MN6 |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M24C01-MN6T |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M24C01-RDS6G |
STMicroelectronics |
EEPROM 1.8-5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
