Product Summary

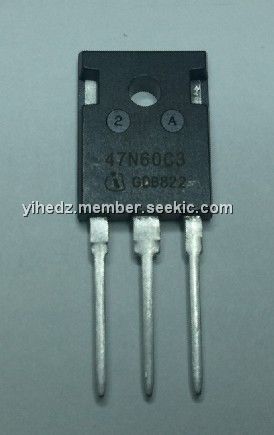

The SPW47N60C3 is a cool MOS power transistor. The package is P-TO247. This device adopts the newest revolutionary high voltage technology, get ultra low gate charge. Infineon Technologies Components may only be used in life-support devices or systems with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system, or to affect the safety or effectiveness of that device or system Life support devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain and/or protect human life.
Parametrics
Absolute maximum ratings: (1)Pulsed drain current, tp limited by Tjmax, ID puls: 141mJ; (2)Avalanche energy, single pulse, ID = 10 A, VDD = 50 V, EAS: 1800 mJ; (3)Avalanche energy, repetitive tAR limited by Tjmax1), ID = 20 A, VDD = 50 V, EAR 1; (4)Avalanche current, repetitive tAR limited by Tjmax, IAR: 20 A; (5)Gate source voltage static, VGS: ±20 V; (6)Gate source voltage AC (f >1Hz), VGS:±30; (7)Power dissipation, TC = 25°C,Ptot 415 W; (8)Operating and storage temperature Tj, Tstg: -55 to+150 °C; (9)Drain Source voltage slope, VDS = 480 V, ID = 47 A, Tj = 125 °C, dv/dt: 50 V/ns; (10)Continuous drain current of TC = 25 °C, ID: 47A; (11)Continuous drain current of TC = 100 °C, ID: 30A.
Features
Features: (1)New revolutionary high voltage technology; (2)Worldwide best RDS(on) in TO 247; (3)Ultra low gate charge; (4)Periodic avalanche rated; (5)Extreme dv/dt rated; (6)Ultra low effective capacitances.
