BTS3142D

a smart lowside power switch, logic level input, Overload protection, thermal shutdown

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.20

PartNumber:: BTS3142D

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-12

From Other Seller

Part Number:BTS3142D
US $0.15 - 0.20
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS3142D is a smart lowside power switch with logic level input and input protection (ESD). There are some places about the device including all kinds of resistive, inductive and capacitive loads in switching or linear applications;μC compatible power switch for 12 V DC applications; Replaces electromechanical relays and discrete circuits and more.

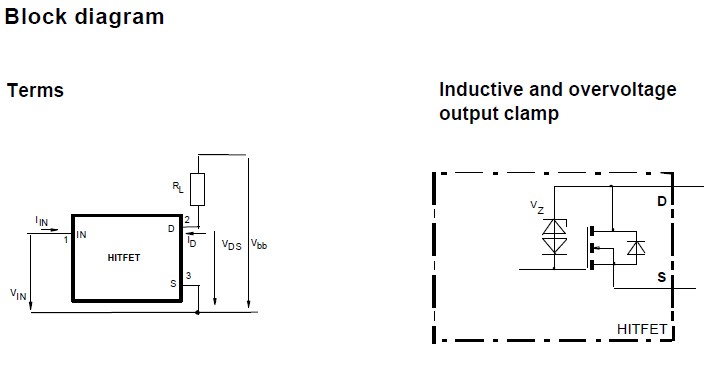

Parametrics

Maximum ratings at tj = 25°c, unless otherwise specified:(1)Drain source voltage, VDS: 42 V; (2)Drain source voltage for short circuit protection Tj = -40...150°C,VDS(SC): 28 v; (3)Continuous input current -0.2V ≤ VIN ≤ 10V, VIN < -0.2V or VIN > 10V,IIN: no limit; (4)| IIN | ≤ 2 mA; (5)Operating temperature, Tj: -40 ...+150 °C; (6)Storage temperature, Tstg: -55 ... +150°C; (7)Power dissipation, Ptot: 59w at TC = 85 °C;1.1w at 6cm2 cooling area , TA = 85 °C; (8)Unclamped single pulse inductive energy 1), EAS: 3.5 J; (9)Load dump protection VLoadDump2) = VA + VS,VIN = 0 and 10 V, td = 400 ms, RI = 2 W, RL = 3 W, VA = 13.5 V, VLD: 67.5 V; (10)Electrostatic discharge voltage (Human Body Model) according to MIL STD 883D, method 3015.7 and EOS/ESD assn. standard S5.1 - 1993,VESD: 2 kV; (11)DIN humidity category, DIN 40 040: E; (12)IEC climatic category; DIN IEC 68-1: 40/150/56.

Features

Features: (1)Logic Level Input; (2)Input Protection (ESD); (3)Thermal shutdown; (4)Overload protection; (5)Short circuit protection; (6)Overvoltage protection; (7)Current limitation; (8)Analog driving possible.
