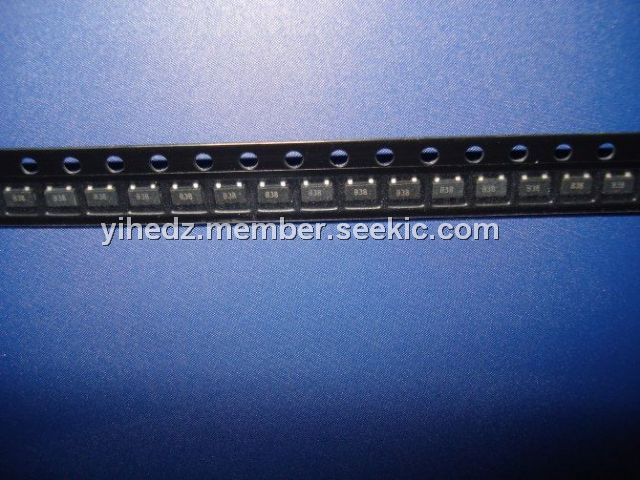

Product Summary

The INA138NA is designed as one kind of high-side measurement current shunt monitor that can be used in current shunt measurement automotive, telephone, computers; portable & battery backup systems; battery chargers;power management and so on. This device converts a differential input voltage to a current output and this current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100.

Parametrics

Absolute maximum ratings of the INA138NA/3K can be summarized as:(1)Lead Temperature (soldering, 10 s): +300°C;(2)Junction Temperature: +150°C;(3)Storage Temperature: -55°C to +125°C;(4)Operating Temperature: -55°C to +125°C;(5)Analog Output, Out: -0.3 V to 40 V.

Features

Features:(1)complete unipolar high-side current measurement circuit; (2)wide supply and common-mode range; (3)INA138: 2.7V to 36V; (4)INA168: 2.7V to 60V; (5)independent supply and input common-mode voltages; (6)single resistor gain set; (7)low quiescent current (25mA typ); (8)SOT23-5 package.

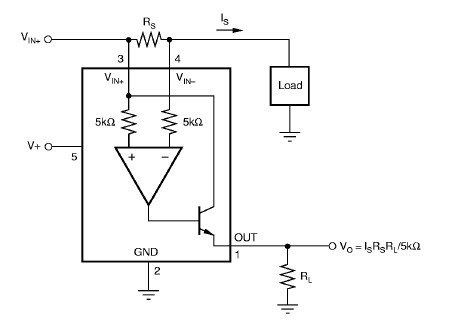

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
INA138NA/250
INA138NA/250
Texas Instruments
Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp
Data Sheet
0-1: $1.36
1-25: $1.06
25-100: $0.95
100-250: $0.79
INA138NA/250G4
INA138NA/250G4
Texas Instruments
Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp
Data Sheet
0-1: $1.55
1-25: $1.20
25-100: $1.09
100-250: $0.79
INA138NA/3K
INA138NA/3K
Texas Instruments
Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp
Data Sheet
0-1: $1.19
1-25: $0.91
25-100: $0.83
100-250: $0.77
INA138NA/3KG4
INA138NA/3KG4
Texas Instruments
Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp
Data Sheet
0-2150: $0.55
2150-3000: $0.52
3000-6000: $0.50
6000-12000: $0.48
