Product Summary
The M45PE16-VMW6TG is a 16Mbit (2M x 8 bit) Serial Paged Flash Memory accessed by a high speed SPI-compatible bus. The memory can be written or programmed 1 to 256 bytes at a time, using the Page Write orPage Program instruction. The Page Write instruction consists of an integrated Page Erase cycle followed by a Page Program cycle. TheM45PE16-VMW6TG is organized as 32 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 8192 pages, or 2,097,152 Bytes. It can be erased a page at a time, using the Page Erase instruction, or a sector at a time, using the Sector Erase instruction.
Parametrics
Absolute maximum ratings: (1)TSTG, Storage Temperature: –65 to 150 °C; (2)TLEAD, Lead Temperature during Soldering: See note ; (3)VIO, Input and Output Voltage (with respect to Ground): –0.6 to VCC + 0.6 V; (4)VCC, Supply Voltage: –0.6 to 4.0 V; (5)VESD, Electrostatic Discharge Voltage (Human Body model): –2000 to 2000 V.
Features
Features: (1)SPI bus compatible serial interface; (2)50 MHz clock rate (maximum); (3)16 Mbit of Page-Erasable Flash memory; (4)Page of 256 Bytes: Page Write in 11 ms (typical); Page Program in 0.8 ms (typical); page Erase in 10 ms (typical); (5)Sector Erase (512 Kbit); (6)Hardware Write protection of the bottom sector(64 KBytes); (7)Electronic Signature: JEDEC Standard two-Byte signature(4015h); (8)2.7 to 3.6 V single supply voltage; (9)Deep Power-down mode 1 μA (typical); (10)More than 100 000 Write cycles; (11)More than 20 years’ data retention; (12)Packages: ECOPACK(RoHS compliant).

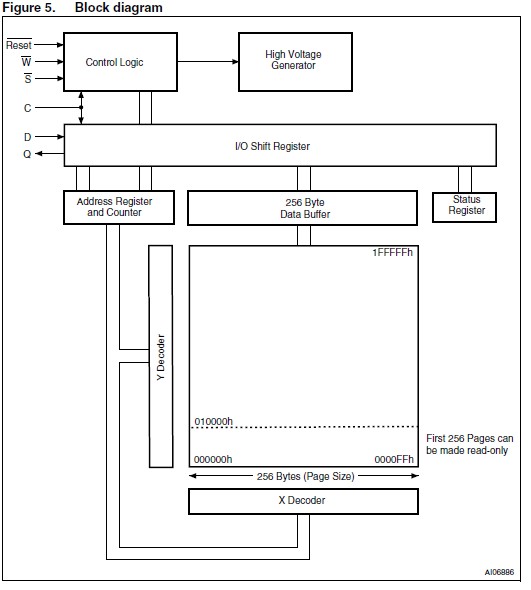

Diagrams
