Product Summary

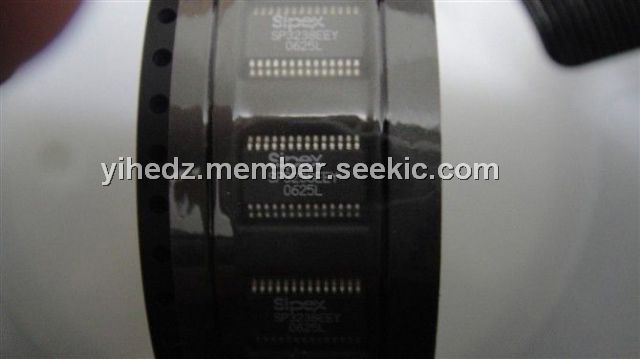

The SP3238EEY is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook and palmtop computers. It uses an internal high-efficiency, charge-pump power supply that requires only 0.1mF capacitors in 3.3V operation. The SP3238EEY is a 5-driver/3-receiver device, ideal for laptop/notebook computer and PDA applications. It includes one complementary receiver that remains alert to monitor an external device s Ring Indicate signal while the device is shutdown.
Parametrics
Absolute maximum ratings: (1)VCC:-0.3V to +6.0V; (2)V+ :-0.3V to +7.0V; (3)V-:+0.3V to -7.0V; (4)V+ + |V-| :+13V; (5)ICC (DC VCC or GND current):+100mA; (6)Input Voltages TxIN, ONLINE, SHUTDOWN, EN:-0.3V to +6.0V; RxIN:+15V; (7)Output Voltages:TxOUT:+15V;RxOUT, STATUS:-0.3V to (VCC + 0.3V); (8)Short-Circuit Duration: TxOUT:Continuous; Storage Temperature:-65°C to +150°C; (9)28-pin SSOP (derate 11.2mW/oC above +70oC):900mW; (10)28-pin TSSOP (derate 13.2mW/oC above +70oC):1100mW.
Features
Features:(1)Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply; (2)Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 dowto a +2.7V power source; (3)Auto-Online circuitry automatically wakes up from a 1mA shutdown; (4)Minimum 250Kbps data rate under load; (5)Regulated Charge Pump Yields Stable RS-232 Outputs Regardless of VCC; (6)Variations; (7)Enhanced ESD Specifications:+15KV HumaBody Model;+15KV IEC1000-4-2 Air Discharge;+8KV IEC1000-4-2 Contact Discharge.

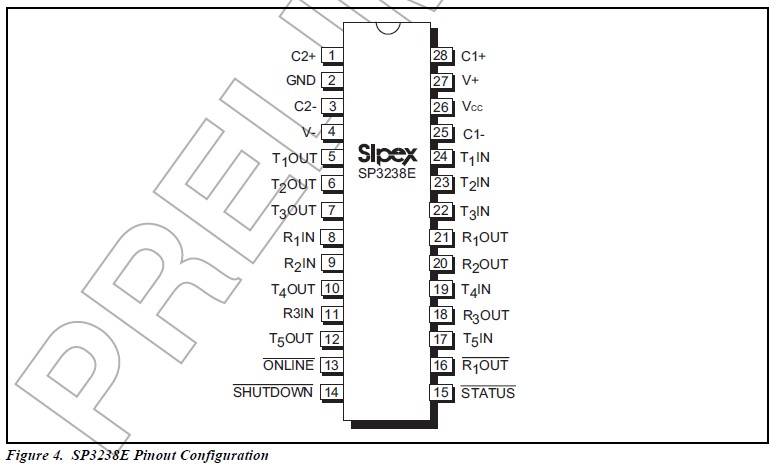

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP3238EEY-L |
Exar |
RS-232 Interface IC RS232 250 kbps temp -40C to 85C |
Data Sheet |
|
|
||||||||||||
|
SP3238EEY-L/TR |
Exar |
Universal Bus Functions Intel. +3V to +5.5V RS-232 |
Data Sheet |
|
|
||||||||||||
